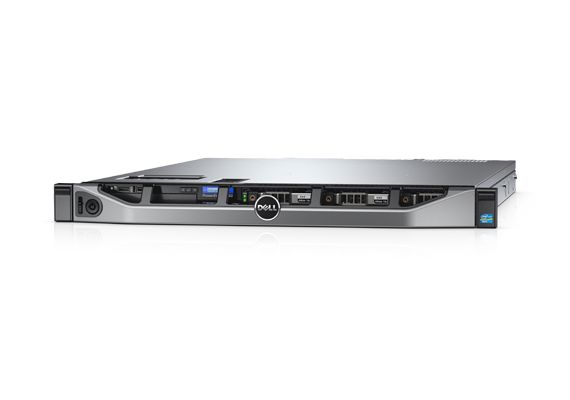

Configure Your Dell PowerEdge R430 Server

Name: Dell PowerEdge R430
Brand: Dell
Rating: 4.7 (92 reviews)
Author: ServerTailor

Configure
Processor
The PowerEdge R430 has two LGA2011-3 processor sockets supporting Xeon E5-2600 processors. Select one or two matching processors.
Intel Xeon Processor E5 v3 Family | Intel Launch Date: 2014
Intel Xeon Processor E5 v4 Family | Intel Launch Date: 2016
V4
V3
Quad-Core 2.6GHz Intel Xeon Broadwell E5-2623 v4 [4-cores / 8-threads]
3.2GHz Max Turbo, 10MB Cache, 85W TDP more info
Single $
Dual $
Quad-Core 3.5GHz Intel Xeon Broadwell E5-2637 v4 [4-cores / 8-threads]
3.7GHz Max Turbo, 15MB Cache, 135W TDP more info
Single $
Dual $
6-Core 3.4GHz Intel Xeon Broadwell E5-2643 v4 [6-cores / 12-threads]
3.7GHz Max Turbo, 20MB Cache, 135W TDP more info
Single $
Dual $
8-Core 1.7GHz Intel Xeon Broadwell E5-2609 v4 [8-cores / 16-threads]
3.0GHz Max Turbo, 20MB Cache, 85W TDP
Single $
Dual $
8-Core 2.1GHz Intel Xeon Broadwell E5-2620 v4 [8-cores / 16-threads]
3.0GHz Max Turbo, 20MB Cache, 85W TDP
Single $
Dual $
8-Core 3.2GHz Intel Xeon Broadwell E5-2667 v4 [8-cores / 16-threads]
3.6GHz Max Turbo, 25MB Cache, 135W TDP
Single $
Dual $
10-Core 2.2GHz Intel Xeon Broadwell E5-2630 v4 [10-cores / 20-threads]
3.1GHz Max Turbo, 25MB Cache, 85W TDP more info
Single $
Dual $
10-Core 2.4GHz Intel Xeon Broadwell E5-2640 v4 [10-cores / 20-threads]
3.4GHz Max Turbo, 25MB Cache, 90W TDP more info
Single $
Dual $
12-Core 2.2GHz Intel Xeon Broadwell E5-2650 v4 [12-cores / 24-threads]
2.9GHz Max Turbo, 30MB Cache, 105W TDP more info
Single $
Dual $
12-Core 3.0GHz Intel Xeon Broadwell E5-2687W v4 [12-cores / 24-threads]
3.5GHz Max Turbo, 30MB Cache, 160W TDP
Single $
Dual $
14-Core 2.0GHz Intel Xeon Broadwell E5-2660 v4 [14-cores / 28-threads]
3.2GHz Max Turbo, 35MB Cache, 105W TDP
Single $
Dual $
14-Core 2.4GHz Intel Xeon Broadwell E5-2680 v4 [14-cores / 28-threads]
3.3GHz Max Turbo, 35MB Cache, 120W TDP
Single $
Dual $
14-Core 2.6GHz Intel Xeon Broadwell E5-2690 v4 [14-cores / 28-threads]
3.5GHz Max Turbo, 35MB Cache, 135W TDP
Single $
Dual $
16-Core 2.1GHz Intel Xeon Broadwell E5-2683 v4 [16-cores / 32-threads]
3.0GHz Max Turbo, 40MB Cache, 120W TDP
Single $
Dual $
16-Core 2.6GHz Intel Xeon Broadwell E5-2697A v4 [16-cores / 32-threads]
3.6GHz Max Turbo, 40MB Cache, 145W TDP
Single $
Dual $
18-Core 2.1GHz Intel Xeon Broadwell E5-2695 v4 [18-cores / 36-threads]
3.3GHz Max Turbo, 45MB Cache, 120W TDP
Single $
Dual $
18-Core 2.3GHz Intel Xeon Broadwell E5-2697 v4 [18-cores / 36-threads]
3.6GHz Max Turbo, 45MB Cache, 145W TDP
Single $
Dual $
20-Core 2.2GHz Intel Xeon Broadwell E5-2698 v4 [20-cores / 40-threads]
3.6GHz Max Turbo, 50MB Cache, 135W TDP
Single $
Dual $
Quad-Core 3.5GHz Intel Xeon Haswell E5-2637 v3 [4-cores / 8-threads]
3.7GHz Max Turbo, 15MB Cache, 135W TDP
Single $
Dual $
6-Core 3.4GHz Intel Xeon Haswell E5-2643 v3 [6-cores / 12-threads]
3.7GHz Max Turbo, 20MB Cache, 135W TDP
Single $
Dual $
8-Core 3.2GHz Intel Xeon Haswell E5-2667 v3 [8-cores / 16-threads]
3.6GHz Max Turbo, 20MB Cache, 135W TDP
Single $
Dual $
10-Core 3.1GHz Intel Xeon Haswell E5-2687W v3 [10-cores / 20-threads]
3.5GHz Max Turbo, 25MB Cache, 160W TDP
Single $
Dual $
12-Core 2.6GHz Intel Xeon Haswell E5-2690 v3 [12-cores / 24-threads]
3.5GHz Max Turbo, 30MB Cache, 135W TDP
Single $
Dual $
14-Core 2.6GHz Intel Xeon Haswell E5-2697 v3 [14-cores / 28-threads]
3.6GHz Max Turbo, 35MB Cache, 145W TDP more info
Single $
Dual $
18-Core 2.3GHz Intel Xeon Haswell E5-2699 v3 [18-cores / 36-threads]
3.6GHz Max Turbo, 45MB Cache, 145W TDP more info
Single $
Dual $
Memory
The PowerEdge R430 has 12x DDR4 ECC memory slots (6x per processor) supporting DDR4 ECC 2133MHz and 2400MHz memory. Select up to 6x modules of matching memory per processor. Note that the Xeon E5-2600 processors have 4 memory channels per processor, thus we recommend selecting 4 memory modules per processor to occupy all memory channels for optimal performance. If you have a high memory count, go with 6 memory modules to occupy all the memory slots. We recommend selecting memory in multiples of 4 - occupying 4 DIMM slots and leaving the other 4 DIMM slots available for future upgrade.
× 8GB of 2400MT/s DDR4 ECC Memory $75 each
× 16GB of 2400MT/s DDR4 ECC Memory $125 each
× 32GB of 2400MT/s DDR4 ECC Memory $200 each
× 8GB of 2133MT/s DDR4 ECC Memory $75 each
× 16GB of 2133MT/s DDR4 ECC Memory $125 each
× 32GB of 2133MT/s DDR4 ECC Memory $200 each
Storage Backplane

8x SFF 2.5-inch SAS/SATA drive bay backplane $

10x SFF 2.5-inch SAS/SATA drive bay backplane $

4x LFF 3.5-inch SAS/SATA drive bay backplane $

Storage
Choose any combination of drives based on the storage form factor selected above. If you go above the maximum allowed drives, the configuration tool will notify you.
2.5-inch SAS Solid-State Drives
× Dell 400GB SAS 12Gb/s 2.5-inch SFF SSD - Mixed Use $750 each
× Dell 480GB SAS 12Gb/s 2.5-inch SFF SSD - Read Intensive $1,000 each
× Dell 960GB SAS 12Gb/s 2.5-inch SFF SSD - Mixed Use $1,250 each
× Dell 1.92TB SAS 12Gb/s 2.5-inch SFF SSD - Mixed Use $1,750 each
× Dell 3.84TB SAS 12Gb/s 2.5-inch SFF SSD - Read Intensive $2,000 each
× Dell 7.68TB SAS 12Gb/s 2.5-inch SFF SSD - Read Intensive $3,000 each
2.5-inch SATA Solid-State Drives
× Dell 240GB SATA 6Gb/s 2.5-inch SFF SSD $325 each
× Dell 480GB SATA 6Gb/s 2.5-inch SFF SSD $425 each
× Dell 960GB SATA 6Gb/s 2.5-inch SFF SSD $625 each
× Dell 1.92TB SATA 6Gb/s 2.5-inch SFF SSD $1,200 each
× Dell 3.84TB SATA 6Gb/s 2.5-inch SFF SSD $1,500 each
2.5-inch SAS Hard Drives
× Dell 300GB 10K SAS 12Gb/s 2.5-inch SFF HDD $100 each
× Dell 600GB 10K SAS 12Gb/s 2.5-inch SFF HDD $125 each
× Dell 900GB 10K SAS 12Gb/s 2.5-inch SFF HDD $150 each
× Dell 1.2TB 10K SAS 12Gb/s 2.5-inch SFF HDD $200 each
× Dell 1.8TB 10K SAS 12Gb/s 2.5-inch SFF HDD $225 each
× Dell 2.4TB 10K SAS 12Gb/s 2.5-inch SFF HDD $375 each
3.5-inch SAS Hard Drives
× Dell 1TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $125 each
× Dell 2TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $150 each
× Dell 4TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $200 each
× Dell 8TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $350 each
× Dell 10TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $500 each
× Dell 12TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $550 each
× Dell 14TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $725 each
× Dell 16TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $900 each
× Dell 18TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $1,200 each
Storage Controller
Dell PowerEdge Storage Controller Comparison

Dell PowerEdge RAID Controller S130 $
Specs User Guide

Dell PowerEdge RAID Controller H330 $
Specs User Guide

Dell PowerEdge RAID Controller H730 w/ 1GB NV Cache $
Specs User Guide

Dell PowerEdge RAID Controller H730P w/ 2GB NV Cache $
Specs User Guide

Dell PowerEdge RAID Controller H830 w/ 2GB NV Cache $
Specs User Guide

Power Supply
Redundant power supply: Up to two 550 W redundant AC power supplies.
Non-redundant power supply: One 450 W non-redundant AC power supply.
Note: Non-redundant power supply is supported in systems with cabled hard drives and the systems with x4 backplane.
Note: For nonredundant power supply units, there is only one power supply socket.
× Dell EMC 450W Gold Hot Plug Power Supply $0 each
× Dell EMC 550W Platinum Hot Plug Power Supply $0 each
Operating System

None $

Windows Server 2022 Essentials $ more info

Windows Server 2022 Standard $ more info

Windows Server 2022 Datacenter $ more info

Ubuntu Server 22.04 LTS $

Red Hat Enterprise Linux Server $ more info

Red Hat Enterprise Linux for Virtual Datacenters $ more info

VMware vSphere $ more info

Condition more info
Refurbished $
New $
Talk to a Specialist
(310) 844-6661
sales@servertailor.com
Ships from Los Angeles, CA
Specifications
Save Configuration
Want to save this unique configuration or share it with someone? Simply click the save button and we'll provide you with a link.
Email
Create Quote
Add your configuration(s) to your cart if you would like to create a personalized quote.
Configuration Help
Have more questions about your configuration? Need professional assistance? We are here to help!
Click the Contact Us button to fill out a contact form with your current configuration or call us at (310) 844-6661.
$75 shipping per unit · Free local pickup
1 Year Warranty · Condition: New
Lead time: 1 to 2 weeks
See Policies & FAQ for details.
Quantity
$ 1,500

Form factor	1U rack server
Dimensions	H: 42.8 mm (1.68 in) W: 482.4 mm (18.99 in) with rack latches; 434.0 mm (17.08 in) without rack latches D: 607.0 mm (23.9 in) without bezel; 676.92 mm (26.7 in) with bezel
Weight	16.73 kg (36.88 lb) empty 19.9 kg (43.87 lb) maximum
Processor	Intel® Xeon® processor E5-2600 v4 product family Processor sockets: 2 Chipset: C610 Internal interconnect: Up to 9.6GT/s Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18, 20
Memory	DDR4 DIMMs at up to 2400MT/s 12 DIMM slots: 4GB/8GB/16GB/32GB
I/O slots	2 PCIe 3.0
Storage	SAS, SATA, nearline SAS, SSD Multiple R430 chassis available: • 10 x 2.5" hot-plug drives • 8 x 2.5" hot-plug drives • 4 x 3.5" hot-plug drives • 4 x 3.5" cabled drives
RAID controllers	Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830
Communications	4 x 1GbE LOM
Power supplies	450W, 550W PSU
Systems management	Systems management: • IPMI 2.0 compliant • Dell OpenManage Essentials • Dell OpenManage Mobile • Dell OpenManage Power Center Remote management: • iDRAC8 with Lifecycle Controller • iDRAC8 Express (default) • iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade) • 16GB vFlash media (upgrade) Dell OpenManage Integrations: • Dell OpenManage Integration Suite for Microsoft® System Center • Dell OpenManage Integration for VMware® vCenterTM Dell OpenManage Connections: • HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management • Dell OpenManage Plug-in for Oracle® Database Manager
Optional supported hypervisors	Citrix® XenServer, VMware vSphere® ESXi®, Red Hat® Enterprise Virtualization®
Operating systems	Microsoft Windows Server® 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell® SUSE® Linux Enterprise Server Red Hat Enterprise Linux VMware vSphere ESXi
Rack support	ReadyRailsTM II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.

Documentation
Dell EMC R430 Spec Sheet View | Download
Dell EMC R430 Owner's Manual View | Download

Dell EMC R430 Spec Sheet	View \| Download
Dell EMC R430 Owner's Manual	View \| Download
