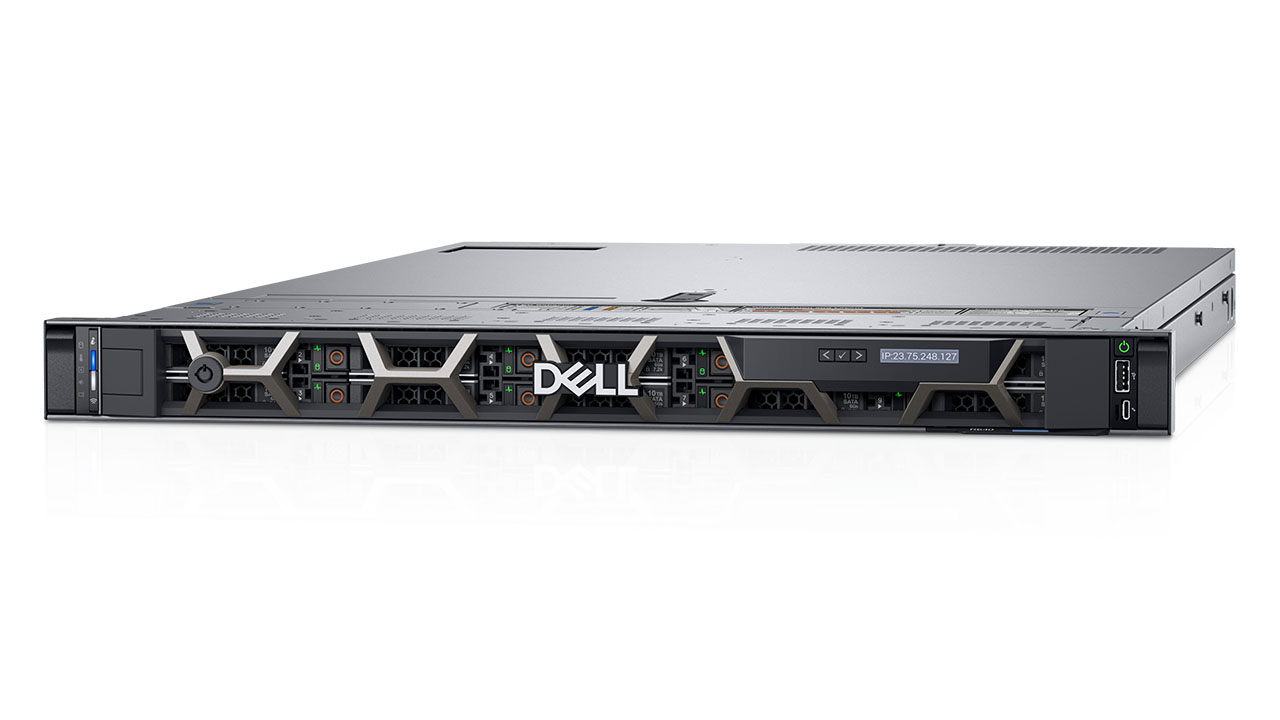

Dell PowerEdge R640 Server

Configure Your Dell PowerEdge R640 Server

  • Configure

    Processor

    The PowerEdge R640 has two LGA3647 processor sockets supporting Xeon Scalable processors. Select one or two matching processors.

    Xeon Scalable (Gen 1) | Intel Launch Date: Q3'17
    Xeon Scalable (Gen 2) | Intel Launch Date: Q2'19
    Xeon Scalable (Gen 2 Refresh) | Intel Launch Date: Q1'20

    • Silver

      8 cores, 3.2 GHz base frequency | Intel Xeon Silver 4215R
      up to 4.0 GHz with Intel Turbo Boost Technology, 11 MB cache more info
      10 cores, 2.4 GHz base frequency | Intel Xeon Silver 4210R
      up to 3.2 GHz with Intel Turbo Boost Technology, 13.75 MB cache more info
      12 cores, 2.4 GHz base frequency | Intel Xeon Silver 4214R
      up to 3.5 GHz with Intel Turbo Boost Technology, 16.5 MB cache more info

      Gold

      8 cores, 3.9 GHz base frequency | Intel Xeon Gold 6250
      up to 4.5 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      12 cores, 3.6 GHz base frequency | Intel Xeon Gold 6256
      up to 4.5 GHz with Intel Turbo Boost Technology, 33 MB cache more info
      16 cores, 2.9 GHz base frequency | Intel Xeon Gold 6226R
      up to 3.9 GHz with Intel Turbo Boost Technology, 22 MB cache more info
      16 cores, 3.4 GHz base frequency | Intel Xeon Gold 6246R
      up to 4.1 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      20 cores, 2.1 GHz base frequency | Intel Xeon Gold 5218R
      up to 4.0 GHz with Intel Turbo Boost Technology, 27.5 MB cache more info
      20 cores, 3.1 GHz base frequency | Intel Xeon Gold 6242R
      up to 4.1 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      24 cores, 2.2 GHz base frequency | Intel Xeon Gold 5220R
      up to 4.0 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      24 cores, 2.4 GHz base frequency | Intel Xeon Gold 6240R
      up to 4.0 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      24 cores, 3.0 GHz base frequency | Intel Xeon Gold 6248R
      up to 4.0 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      26 cores, 2.1 GHz base frequency | Intel Xeon Gold 6230R
      up to 4.0 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      28 cores, 2.2 GHz base frequency | Intel Xeon Gold 6238R
      up to 4.0 GHz with Intel Turbo Boost Technology, 38.5 MB cache more info
      28 cores, 2.7 GHz base frequency | Intel Xeon Gold 6258R
      up to 4.0 GHz with Intel Turbo Boost Technology, 38.5 MB cache more info
    • Silver

      8 cores, 2.1 GHz base frequency | Intel Xeon Silver 4208
      up to 3.2 GHz with Intel Turbo Boost Technology, 11 MB cache more info
      8 cores, 2.5 GHz base frequency | Intel Xeon Silver 4215
      up to 3.5 GHz with Intel Turbo Boost Technology, 11 MB cache more info
      10 cores, 2.2 GHz base frequency | Intel Xeon Silver 4210
      up to 3.2 GHz with Intel Turbo Boost Technology, 13.75 MB cache more info
      12 cores, 2.2 GHz base frequency | Intel Xeon Silver 4214
      up to 3.2 GHz with Intel Turbo Boost Technology, 16.5 MB cache more info
      16 cores, 2.1 GHz base frequency | Intel Xeon Silver 4216
      up to 3.2 GHz with Intel Turbo Boost Technology, 22 MB cache more info

      Gold

      4 cores, 3.8 GHz base frequency | Intel Xeon Gold 5222
      up to 3.9 GHz with Intel Turbo Boost Technology, 16.5 MB cache more info
      8 cores, 3.3 GHz base frequency | Intel Xeon Gold 6234
      up to 4.0 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      8 cores, 3.6 GHz base frequency | Intel Xeon Gold 6244
      up to 4.4 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      10 cores, 2.5 GHz base frequency | Intel Xeon Gold 5215
      up to 3.4 GHz with Intel Turbo Boost Technology, 13.75 MB cache more info
      12 cores, 2.7 GHz base frequency | Intel Xeon Gold 6226
      up to 3.7 GHz with Intel Turbo Boost Technology, 19.25 MB cache more info
      12 cores, 3.3 GHz base frequency | Intel Xeon Gold 6246
      up to 4.2 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      16 cores, 2.3 GHz base frequency | Intel Xeon Gold 5218
      up to 3.9 GHz with Intel Turbo Boost Technology, 22 MB cache more info
      16 cores, 2.8 GHz base frequency | Intel Xeon Gold 6242
      up to 3.9 GHz with Intel Turbo Boost Technology, 22 MB cache more info
      18 cores, 2.2 GHz base frequency | Intel Xeon Gold 5220
      up to 3.9 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      18 cores, 2.6 GHz base frequency | Intel Xeon Gold 6240
      up to 3.9 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      18 cores, 3.1 GHz base frequency | Intel Xeon Gold 6254
      up to 4.0 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      20 cores, 2.1 GHz base frequency | Intel Xeon Gold 6230
      up to 3.9 GHz with Intel Turbo Boost Technology, 27.5 MB cache more info
      20 cores, 2.5 GHz base frequency | Intel Xeon Gold 6248
      up to 3.9 GHz with Intel Turbo Boost Technology, 27.5 MB cache more info
      22 cores, 2.1 GHz base frequency | Intel Xeon Gold 6238
      up to 3.7 GHz with Intel Turbo Boost Technology, 30.25 MB cache more info
      24 cores, 2.1 GHz base frequency | Intel Xeon Gold 6252
      up to 3.7 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info

      Platinum

      24 cores, 2.4 GHz base frequency | Intel Xeon Platinum 8260
      up to 3.9 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      24 cores, 2.9 GHz base frequency | Intel Xeon Platinum 8268
      up to 3.9 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      28 cores, 2.2 GHz base frequency | Intel Xeon Platinum 8276
      up to 4.0 GHz with Intel Turbo Boost Technology, 38.5 MB cache more info
      28 cores, 2.7 GHz base frequency | Intel Xeon Platinum 8280
      up to 4.0 GHz with Intel Turbo Boost Technology, 38.5 MB cache more info
    • Silver

      4 cores, 2.6 GHz base frequency | Intel Xeon Silver 4112
      up to 3 GHz with Intel Turbo Boost Technology, 8.25 MB cache more info
      8 cores, 1.8 GHz base frequency | Intel Xeon Silver 4108
      up to 3 GHz with Intel Turbo Boost Technology, 11 MB cache more info
      8 cores, 2.1 GHz base frequency | Intel Xeon Silver 4110
      up to 3 GHz with Intel Turbo Boost Technology, 11 MB cache more info
      10 cores, 2.2 GHz base frequency | Intel Xeon Silver 4114
      up to 3 GHz with Intel Turbo Boost Technology, 13.75 MB cache more info

      Gold

      4 cores, 3.6 GHz base frequency | Intel Xeon Gold 5122
      up to 3.7 GHz with Intel Turbo Boost Technology, 16.5 MB cache more info
      6 cores, 3.4 GHz base frequency | Intel Xeon Gold 6128
      up to 3.7 GHz with Intel Turbo Boost Technology, 19.25 MB cache more info
      8 cores, 3.2 GHz base frequency | Intel Xeon Gold 6134
      up to 3.7 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      8 cores, 3.5 GHz base frequency | Intel Xeon Gold 6144
      up to 4.2 GHz with Intel Turbo Boost Technology, 25 MB cache more info
      10 cores, 2.4 GHz base frequency | Intel Xeon Gold 5115
      up to 3.2 GHz with Intel Turbo Boost Technology, 13.75 MB cache more info
      12 cores, 2.1 GHz base frequency | Intel Xeon Silver 4116
      up to 3 GHz with Intel Turbo Boost Technology, 16.5 MB cache more info
      12 cores, 2.3 GHz base frequency | Intel Xeon Gold 5118
      up to 3.2 GHz with Intel Turbo Boost Technology, 16.5 MB cache more info
      12 cores, 2.6 GHz base frequency | Intel Xeon Gold 6126
      up to 3.7 GHz with Intel Turbo Boost Technology, 19.25 MB cache more info
      12 cores, 3.0 GHz base frequency | Intel Xeon Gold 6136
      up to 3.7 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      12 cores, 3.2 GHz base frequency | Intel Xeon Gold 6146
      up to 4.2 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      14 cores, 2.2 GHz base frequency | Intel Xeon Gold 5120
      up to 3.2 GHz with Intel Turbo Boost Technology, 19.25 MB cache more info
      14 cores, 2.6 GHz base frequency | Intel Xeon Gold 6132
      up to 3.7 GHz with Intel Turbo Boost Technology, 19.25 MB cache more info
      16 cores, 2.1 GHz base frequency | Intel Xeon Gold 6130
      up to 3.7 GHz with Intel Turbo Boost Technology, 22 MB cache more info
      16 cores, 2.6 GHz base frequency | Intel Xeon Gold 6142
      up to 3.7 GHz with Intel Turbo Boost Technology, 22 MB cache more info
      18 cores, 2.3 GHz base frequency | Intel Xeon Gold 6140
      up to 3.7 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      18 cores, 2.7 GHz base frequency | Intel Xeon Gold 6150
      up to 3.7 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      18 cores, 3.0 GHz base frequency | Intel Xeon Gold 6154
      up to 3.7 GHz with Intel Turbo Boost Technology, 24.75 MB cache more info
      20 cores, 2.0 GHz base frequency | Intel Xeon Gold 6138
      up to 3.7 GHz with Intel Turbo Boost Technology, 27.5 MB cache more info
      20 cores, 2.4 GHz base frequency | Intel Xeon Gold 6148
      up to 3.7 GHz with Intel Turbo Boost Technology, 27.5 MB cache more info
      22 cores, 2.1 GHz base frequency | Intel Xeon Gold 6152
      up to 3.7 GHz with Intel Turbo Boost Technology, 30.25 MB cache more info

      Platinum

      24 cores, 2.1 GHz base frequency | Intel Xeon Platinum 8160
      up to 3.7 GHz with Intel Turbo Boost Technology, 33 MB cache more info
      28 cores, 2.0 GHz base frequency | Intel Xeon Platinum 8173M
      up to 3.5 GHz with Intel Turbo Boost Technology, 35.75 MB cache more info
      28 cores, 2.5 GHz base frequency | Intel Xeon Platinum 8180
      up to 3.8 GHz with Intel Turbo Boost Technology, 38.5 MB cache more info


    Memory

    The PowerEdge R640 has 24x DDR4 ECC memory slots (12x per processor) supporting DDR4 ECC 2666MHz and 2933MHz memory. Select up to 12x modules of matching memory per processor. Note that the Xeon Scalable processors have 6 memory channels per processor, thus we recommend selecting 6 memory modules per processor to occupy all memory channels for optimal performance. If you have a high memory count, go with 12 memory modules to occupy all the memory slots. We recommend selecting memory in multiples of 6 - occupying 6 DIMM slots and leaving the other 6 DIMM slots available for future upgrade.

     ×
     ×
     ×
     ×
     ×
     ×
     ×
     ×


    Storage Backplane


    Storage

    Choose any combination of drives based on the storage form factor selected above. If you go above the maximum allowed drives, the configuration tool will notify you.

    2.5-inch SAS Solid-State Drives

     ×
     ×
     ×
     ×
     ×
     ×

    2.5-inch SATA Solid-State Drives

     ×
     ×
     ×
     ×
     ×

    2.5-inch SAS Hard Drives

     ×
     ×
     ×
     ×
     ×
     ×

    3.5-inch SAS Hard Drives

     ×
     ×
     ×
     ×
     ×
     ×
     ×
     ×
     ×



    Network

    Servers come standard with one 1Gb Ethernet port. Additional network cards can be added for multiple network connections or 10Gb, 24Gb, or 100Gb networks. Daughter cards are embedded on the motherboard, not occupying a PCIe slot.

    Daughter Card

    PCIe Card


    Graphics

    The PowerEdge R640 has 3x PCIe 3.0 x16 slots supporting up to 2x single width graphics cards.

    Quadro

     ×
     ×
     ×
     ×
     ×
     ×
     ×
     ×
     ×
     ×
     ×


    Power Supply

     ×
     ×
     ×
     ×
     ×
     ×


    Operating System


    $75 shipping per unit · Free local pickup

    Lead time: 1 to 2 weeks
    See Policies & FAQ for details.

    $ 3,450
  • ProcessorUp to two Intel® Xeon® Scalable processors, up to 28 cores per processor
    Memory24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1.5TB max Up to 12 NVDIMM, 192 GB Max
    Supports registered ECC DDR4 DIMMs only
    Storage controllersInternal controllers: PERC H330, H730p, H740p, Software RAID (SWRAID) S140
    Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
    External PERC (RAID): H840
    12Gbps SAS HBAs (non-RAID): External- 12Gbps SAS HBA (non-RAID), Internal- HBA330 (non-RAID)
    Drive baysFront drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 58TB or up to 4 x 3.5” SAS/SATA HDD max 48TB
    Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 12TB
    Optional DVD-ROM, DVD+RW
    Power suppliesTitanium 750W, Platinum 495W, 750W, 1100W, and 1600W
    48VDC 1100W, 380HVDC 1100W, 240HVDC 750W Hot plug power supplies with full redundancy option
    DimensionsForm factor: Rack (1U)
    Chassis depth: 705.05 mm
    Embedded managementIPMI 2.0 compliant
    iDRAC9 with Lifecycle Controller (Express, Enterprise)
    Quick Sync 2 wireless module optiona
    BezelOptional LCD bezel or security bezel
    OpenManageTM SoftwareOpenManage Enterprise
    OpenManage Essentials
    OpenManage Mobile
    OpenManage Power Center
    Integrations and connectionsIntegrations: Microsoft® System Center, VMware® vCenterTM, BMC Software
    Connections: Nagios & Nagios XI, Oracle Enterprise Manager, HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli® Network Manager, CA Network and Systems Management
    SecurityTPM 1.2/2.0 optional
    Cryptographically signed Firmware
    Secure Boot
    System Lockdown
    Secure erase
    I/O & PortsNetwork daughter card options
    4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
    Front ports: Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct USB Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
    Video card: VGA, NVIDIA NVS310 available as PCIe card
    Up to 3 x Gen3 slots, all x16
    Supported operating systemsCanonical® Ubuntu® LTS
    Citrix® XenServer®
    Microsoft Windows Server® with Hyper-V
    Red Hat® Enterprise Linux
    SUSE® Linux Enterprise Server
    VMware® ESXi
  • Documentation

    Dell EMC R640 Spec SheetView | Download
    Dell EMC R640 Technical GuideView | Download
    Dell EMC R640 - Installation and Service ManualView | Download

To create a quote, first add this product and any other products to your cart. Then within the cart, click the "Save Quote" button.

Share Configuration

Select a method to share your configuration.

Ask Our Expert Staff

Need expert advice? We are here to help! Please fill out the form below to have a technician contact you.

Fields marked with * are required.


Contact Us

Call: (310) 844-6661 (Monday - Friday, 10am - 6pm PST)
Email: sales@servertailor.com

(blank title)

ZWorkstations Inc., dba ServerTailor is an independent distribution channel. [+]

ZWorkstations Inc., dba ServerTailor is an independent distribution channel and is not associated with Dell Inc as well as with HP Inc as well as with Super Micro Computer Inc. Intel™ is a registered trademark and Xeon™ is a trademark of Intel Corp. or its subsidiaries in the United States and other countries. Dell™ is a trademark of Dell Inc. Dell PowerEdge™ is a trademark of Dell Inc. PowerEdge™ is a trademark of Dell Inc. HP™ is a trademark of HP Inc. HP Z™ is a trademark of HP Inc. HP Proliant™ is a trademark of HP Inc.

Condition

New: Purchased new from a HPE/Dell/Supermicro authorized distributor. Never used. Ships in original manufacturer packaging.

Refurbished: Pulled from corporate environment in working condition. Tested upon arrival at our location and also after customization. Cosmetically grade A or B. Overall in good condition, but could have light scratches / scuffs. Ships in double-wall brown box with durable packaging material.
