Configure Your Dell PowerEdge T630 Server

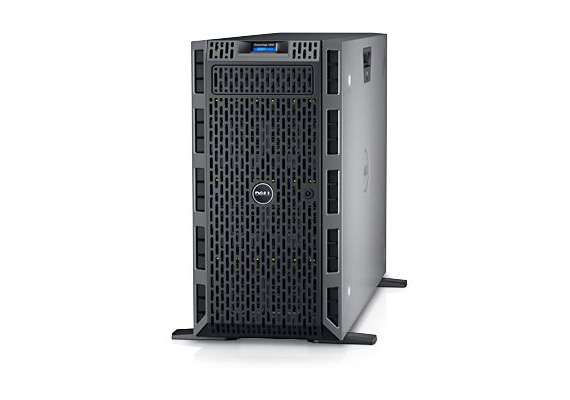

Name: Dell PowerEdge T630
Brand: Dell
Rating: 4.7 (92 reviews)
Author: ServerTailor

Configure
Processor
The PowerEdge T630 has two LGA2011-3 processor sockets supporting Xeon E5-2600 processors. Select one or two matching processors.
Intel Xeon Processor E5 v3 Family | Intel Launch Date: 2014
Intel Xeon Processor E5 v4 Family | Intel Launch Date: 2016
V4
V3
Quad-Core 2.6GHz Intel Xeon Broadwell E5-2623 v4 [4-cores / 8-threads]
3.2GHz Max Turbo, 10MB Cache, 85W TDP more info
Single $
Dual $
Quad-Core 3.5GHz Intel Xeon Broadwell E5-2637 v4 [4-cores / 8-threads]
3.7GHz Max Turbo, 15MB Cache, 135W TDP more info
Single $
Dual $
6-Core 3.4GHz Intel Xeon Broadwell E5-2643 v4 [6-cores / 12-threads]
3.7GHz Max Turbo, 20MB Cache, 135W TDP more info
Single $
Dual $
8-Core 1.7GHz Intel Xeon Broadwell E5-2609 v4 [8-cores / 16-threads]
3.0GHz Max Turbo, 20MB Cache, 85W TDP
Single $
Dual $
8-Core 2.1GHz Intel Xeon Broadwell E5-2620 v4 [8-cores / 16-threads]
3.0GHz Max Turbo, 20MB Cache, 85W TDP
Single $
Dual $
8-Core 3.2GHz Intel Xeon Broadwell E5-2667 v4 [8-cores / 16-threads]
3.6GHz Max Turbo, 25MB Cache, 135W TDP
Single $
Dual $
10-Core 2.2GHz Intel Xeon Broadwell E5-2630 v4 [10-cores / 20-threads]
3.1GHz Max Turbo, 25MB Cache, 85W TDP more info
Single $
Dual $
10-Core 2.4GHz Intel Xeon Broadwell E5-2640 v4 [10-cores / 20-threads]
3.4GHz Max Turbo, 25MB Cache, 90W TDP more info
Single $
Dual $
12-Core 2.2GHz Intel Xeon Broadwell E5-2650 v4 [12-cores / 24-threads]
2.9GHz Max Turbo, 30MB Cache, 105W TDP more info
Single $
Dual $
12-Core 3.0GHz Intel Xeon Broadwell E5-2687W v4 [12-cores / 24-threads]
3.5GHz Max Turbo, 30MB Cache, 160W TDP
Single $
Dual $
14-Core 2.0GHz Intel Xeon Broadwell E5-2660 v4 [14-cores / 28-threads]
3.2GHz Max Turbo, 35MB Cache, 105W TDP
Single $
Dual $
14-Core 2.4GHz Intel Xeon Broadwell E5-2680 v4 [14-cores / 28-threads]
3.3GHz Max Turbo, 35MB Cache, 120W TDP
Single $
Dual $
14-Core 2.6GHz Intel Xeon Broadwell E5-2690 v4 [14-cores / 28-threads]
3.5GHz Max Turbo, 35MB Cache, 135W TDP
Single $
Dual $
16-Core 2.1GHz Intel Xeon Broadwell E5-2683 v4 [16-cores / 32-threads]
3.0GHz Max Turbo, 40MB Cache, 120W TDP
Single $
Dual $
16-Core 2.6GHz Intel Xeon Broadwell E5-2697A v4 [16-cores / 32-threads]
3.6GHz Max Turbo, 40MB Cache, 145W TDP
Single $
Dual $
18-Core 2.1GHz Intel Xeon Broadwell E5-2695 v4 [18-cores / 36-threads]
3.3GHz Max Turbo, 45MB Cache, 120W TDP
Single $
Dual $
18-Core 2.3GHz Intel Xeon Broadwell E5-2697 v4 [18-cores / 36-threads]
3.6GHz Max Turbo, 45MB Cache, 145W TDP
Single $
Dual $
20-Core 2.2GHz Intel Xeon Broadwell E5-2698 v4 [20-cores / 40-threads]
3.6GHz Max Turbo, 50MB Cache, 135W TDP
Single $
Dual $
22-Core 2.2GHz Intel Xeon Broadwell E5-2699 v4 [22-cores / 44-threads]
3.6GHz Max Turbo, 55MB Cache, 145W TDP
Single $
Dual $
22-Core 2.4GHz Intel Xeon Broadwell E5-2699A v4 [22-cores / 44-threads]
3.6GHz Max Turbo, 55MB Cache, 145W TDP
Single $
Dual $
Quad-Core 3.5GHz Intel Xeon Haswell E5-2637 v3 [4-cores / 8-threads]
3.7GHz Max Turbo, 15MB Cache, 135W TDP
Single $
Dual $
6-Core 3.4GHz Intel Xeon Haswell E5-2643 v3 [6-cores / 12-threads]
3.7GHz Max Turbo, 20MB Cache, 135W TDP
Single $
Dual $
8-Core 3.2GHz Intel Xeon Haswell E5-2667 v3 [8-cores / 16-threads]
3.6GHz Max Turbo, 20MB Cache, 135W TDP
Single $
Dual $
10-Core 3.1GHz Intel Xeon Haswell E5-2687W v3 [10-cores / 20-threads]
3.5GHz Max Turbo, 25MB Cache, 160W TDP
Single $
Dual $
12-Core 2.6GHz Intel Xeon Haswell E5-2690 v3 [12-cores / 24-threads]
3.5GHz Max Turbo, 30MB Cache, 135W TDP
Single $
Dual $
14-Core 2.6GHz Intel Xeon Haswell E5-2697 v3 [14-cores / 28-threads]
3.6GHz Max Turbo, 35MB Cache, 145W TDP more info
Single $
Dual $
18-Core 2.3GHz Intel Xeon Haswell E5-2699 v3 [18-cores / 36-threads]
3.6GHz Max Turbo, 45MB Cache, 145W TDP more info
Single $
Dual $
Memory
The PowerEdge T630 has 24x DDR4 ECC memory slots (12x per processor) supporting DDR4 ECC 2133MHz and 2400MHz memory. Select up to 12x modules of matching memory per processor. Note that the Xeon E5-2600 processors have 2 memory channels per processor, thus we recommend selecting 2 memory modules per processor to occupy all memory channels for optimal performance. If you have a high memory count, go with 12 memory modules to occupy all the memory slots. We recommend selecting memory in multiples of 2 - occupying 2 DIMM slots and leaving the other 2 DIMM slots available for future upgrade.
× 8GB of 2400MT/s DDR4 ECC Memory $75 each
× 16GB of 2400MT/s DDR4 ECC Memory $125 each
× 32GB of 2400MT/s DDR4 ECC Memory $200 each
× 64GB of 2400MT/s DDR4 ECC Memory $350 each
× 8GB of 2133MT/s DDR4 ECC Memory $75 each
× 16GB of 2133MT/s DDR4 ECC Memory $125 each
× 32GB of 2133MT/s DDR4 ECC Memory $200 each
× 64GB of 2133MT/s DDR4 ECC Memory $350 each
Storage Backplane

8x LFF 3.5-inch SAS/SATA drive bay backplane $

18x LFF 3.5-inch SAS/SATA drive bay backplane $

16x SFF 2.5-inch SAS/SATA drive bay backplane $

32x SFF 2.5-inch SAS/SATA drive bay backplane $

Storage
Choose any combination of drives based on the storage form factor selected above. If you go above the maximum allowed drives, the configuration tool will notify you.
2.5-inch SAS Solid-State Drives
× Dell 400GB SAS 12Gb/s 2.5-inch SFF SSD - Mixed Use $750 each
× Dell 480GB SAS 12Gb/s 2.5-inch SFF SSD - Read Intensive $1,000 each
× Dell 960GB SAS 12Gb/s 2.5-inch SFF SSD - Mixed Use $1,250 each
× Dell 1.92TB SAS 12Gb/s 2.5-inch SFF SSD - Mixed Use $1,750 each
× Dell 3.84TB SAS 12Gb/s 2.5-inch SFF SSD - Read Intensive $2,000 each
× Dell 7.68TB SAS 12Gb/s 2.5-inch SFF SSD - Read Intensive $3,000 each
2.5-inch SATA Solid-State Drives
× Dell 240GB SATA 6Gb/s 2.5-inch SFF SSD $325 each
× Dell 480GB SATA 6Gb/s 2.5-inch SFF SSD $425 each
× Dell 960GB SATA 6Gb/s 2.5-inch SFF SSD $625 each
× Dell 1.92TB SATA 6Gb/s 2.5-inch SFF SSD $1,200 each
× Dell 3.84TB SATA 6Gb/s 2.5-inch SFF SSD $1,500 each
2.5-inch SAS Hard Drives
× Dell 300GB 10K SAS 12Gb/s 2.5-inch SFF HDD $100 each
× Dell 600GB 10K SAS 12Gb/s 2.5-inch SFF HDD $125 each
× Dell 900GB 10K SAS 12Gb/s 2.5-inch SFF HDD $150 each
× Dell 1.2TB 10K SAS 12Gb/s 2.5-inch SFF HDD $200 each
× Dell 1.8TB 10K SAS 12Gb/s 2.5-inch SFF HDD $225 each
× Dell 2.4TB 10K SAS 12Gb/s 2.5-inch SFF HDD $375 each
3.5-inch SAS Hard Drives
× Dell 1TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $125 each
× Dell 2TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $150 each
× Dell 4TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $200 each
× Dell 8TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $350 each
× Dell 10TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $500 each
× Dell 12TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $550 each
× Dell 14TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $725 each
× Dell 16TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $900 each
× Dell 18TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $1,200 each
Storage Controller
Dell PowerEdge Storage Controller Comparison

Dell PowerEdge RAID Controller S130 $
Specs User Guide

Dell PowerEdge RAID Controller H330 $
Specs User Guide

Dell PowerEdge RAID Controller H730 w/ 1GB NV Cache $
Specs User Guide

Dell PowerEdge RAID Controller H730P w/ 2GB NV Cache $
Specs User Guide

Dell PowerEdge RAID Controller H830 w/ 2GB NV Cache $
Specs User Guide

Graphics
The PowerEdge T630 has 4x PCIe 3.0 x16 slots supporting up to 4x double width graphics cards. The chassis comes with a rear VGA connection by default. If the server will be running GPU intensive applications, additional graphics accelerators can be added.
Quadro
× NVIDIA Quadro M2000 4GB $300 each more info
× NVIDIA Quadro M4000 8GB $500 each more info
× NVIDIA Quadro M5000 8GB $750 each more info
× NVIDIA Quadro M6000 12GB $1,500 each more info
× NVIDIA Quadro M6000 24GB $2,000 each more info
× NVIDIA Quadro P620 2GB $300 each more info
× NVIDIA Quadro P1000 4GB $500 each more info
× NVIDIA Quadro P2200 5GB $700 each more info
× NVIDIA Quadro P4000 8GB $1,100 each more info
× NVIDIA Quadro P5000 16GB $1,850 each more info
× NVIDIA Quadro P6000 24GB $2,450 each more info
× NVIDIA Quadro GP100 16GB $2,450 each more info
× NVIDIA Quadro GV100 32GB $10,000 each more info
× NVIDIA Quadro T400 2GB $250 each more info
× NVIDIA Quadro T600 4GB $350 each more info
× NVIDIA Quadro T1000 4GB $500 each more info
× NVIDIA Quadro T1000 8GB $600 each more info
× NVIDIA Quadro RTX 4000 8GB $1,000 each more info
× NVIDIA Quadro RTX 5000 16GB $1,750 each more info
× NVIDIA Quadro RTX 6000 24GB $2,750 each more info
× NVIDIA Quadro RTX 8000 48GB $4,000 each more info
× NVIDIA Quadro RTX A4000 16GB $1,450 each more info
× NVIDIA Quadro RTX A4500 20GB $1,950 each more info
× NVIDIA Quadro RTX A5000 24GB $2,750 each more info
× NVIDIA Quadro RTX A5500 24GB $3,250 each more info
× NVIDIA Quadro RTX A6000 48GB $5,500 each more info
Tesla
× NVIDIA Tesla Kepler K80 24GB $3,750 each more info
× NVIDIA Tesla Pascal P100 12GB $6,000 each more info
× NVIDIA Tesla Pascal P100 16GB $6,000 each more info
× NVIDIA Tesla Volta V100 32GB $8,500 each more info
× NVIDIA A2 16GB Tensor Core GPU $3,000 each more info
× NVIDIA A30 24GB Tensor Core GPU $7,500 each more info
× NVIDIA A100 40GB Tensor Core GPU $14,000 each more info
× NVIDIA A100 80GB Tensor Core GPU $17,500 each more info
Power Supply
× Dell EMC 495W Platinum Hot Plug Power Supply $0 each
× Dell EMC 750W Platinum Hot Plug Power Supply $200 each
× Dell EMC 750W Titanium Hot Plug Power Supply $200 each
250 Volt Power Cord Required for Use
× Dell EMC 1100W Platinum Hot Plug Power Supply $300 each
× Dell EMC 1600W Platinum Hot Plug Power Supply $350 each
250 Volt Power Cord Required for Use
Operating System

None $

Windows Server 2022 Essentials $ more info

Windows Server 2022 Standard $ more info

Windows Server 2022 Datacenter $ more info

Ubuntu Server 22.04 LTS $

Red Hat Enterprise Linux Server $ more info

Red Hat Enterprise Linux for Virtual Datacenters $ more info

VMware vSphere $ more info

Condition more info
Refurbished $
New $
Talk to a Specialist
(310) 844-6661
sales@servertailor.com
Ships from Los Angeles, CA
Specifications
Save Configuration
Want to save this unique configuration or share it with someone? Simply click the save button and we'll provide you with a link.
Email
Create Quote
Add your configuration(s) to your cart if you would like to create a personalized quote.
Configuration Help
Have more questions about your configuration? Need professional assistance? We are here to help!
Click the Contact Us button to fill out a contact form with your current configuration or call us at (310) 844-6661.
$75 shipping per unit · Free local pickup
1 Year Warranty · Condition: New
Lead time: 1 to 2 weeks
See Policies & FAQ for details.
Quantity
$ 2,000

Form factor	Tower (5U rackable)
Dimensions	H: 443.5 mm (17.5 in) with feet; 430.5 mm (16.95 in) without feet W: 304.5 mm (11.98 in) with feet opened; 217.9 mm (8.57 in) with feet closed D: 692.8 mm (27.27 in) without bezel; 708.7 mm (27.9 in) with bezel
Weight	41.8 kg (92.15 lb) for 2.5” hard drive chassis 51.0 kg (112.43 lb) for 3.5” hard-drive chassis
Processor	Intel® Xeon® processor E5-2600 v3/v4 product family Processor sockets: 2 Internal interconnect: Two QPI links; 6.4GT/s, 8.0GT/s, 9.6GT/s Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22
Chipset	Intel C610 series
Memory	Up to 1.5TB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
I/O slots	8 PCIe slots: • Slot 1: one x16 PCIe 3.0 for FL/FH card from CPU1 • Slot 2: one x8 PCIe 2.0 for FL/FH card from PCH (x4 lanes) • Slot 3: one x16 PCIe 3.0 for FL/FH card from CPU1 • Slot 4: one x8 PCIe 3.0 for HL/FH card from CPU2 • Slot 5: one x8 PCIe 2.0 for FL/FH card from CPU2 (x4 lanes) • Slot 6: one x16 PCIe 3.0 for FL/FH card from CPU2 • Slot 7: one x16 PCIe 3.0 for FL/FH card from CPU2 • Slot 8 (Internal PERC slot): one x8 PCIe 3.0 for HL/FH card from CPU1
RAID controllers	Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P Internal HBA (Non-RAID): HBA330 External HBAs (RAID): PERC H830
Drive bays	Internal hard drive bay and hot-plug backplane: Up to 8 x 3.5" SAS, SATA, nearline SAS, SSD, PCIe SSD drives with optional ex bay Up to 18 x 3.5" SAS, SATA, nearline SAS, SSD drives Up to 16 x 2.5" SAS, SATA, nearline SAS, SSD, PCIe SSD drives with optional ex bay Up to 32 x 2.5" SAS, SATA, nearline SAS, SSD drives
Hard drives	Hot-plug hard drive options: 2.5" SAS, SATA, nearline SAS, SSD, Express Flash PCIe SSD 3.5" SAS, SATA, nearline SAS, SSD Self-encrypting drives available
Embedded NIC	Intel dual-port 1GbE LOM
GPU	Up to 4x 300W internal NVIDIA Tesla processing accelerators
Power supplies	Titanium efficiency 750W AC power supply Gold efficiency 1100W DC power supply Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply
Systems management	Systems management: IPMI 2.0 compliant, Dell OpenManage Essentials, Dell OpenManage Mobile, Dell OpenManage Power Center Remote management: iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) Dell OpenManage Integrations: • Dell OpenManage Integration Suite for Microsoft® System Center • Dell OpenManage Integration for VMware® vCenterTM Dell OpenManage Connections: • HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management • Dell OpenManage Plug-in for Oracle® Database Manager
Rack support	ReadyRailsTM II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm. Rack mount model available (must be ordered at time of initial purchase).
Operating systems	Microsoft Windows Server® 2008/2012 R2 Microsoft Windows Server 2008/2012 R2 SP2, x86/x64 Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux®
Optional embedded hypervisors	Citrix® XenServer® VMware vSphere® ESXiTM Red Hat Enterprise Virtualization®

Documentation
Dell EMC T630 Spec Sheet View | Download
Dell EMC T630 Owner's Manual View | Download

Dell EMC T630 Spec Sheet	View \| Download
Dell EMC T630 Owner's Manual	View \| Download

Configure Your Dell PowerEdge T630 Server

Configure

Processor

Memory

Storage Backplane

Storage

2.5-inch SAS Solid-State Drives

2.5-inch SATA Solid-State Drives

2.5-inch SAS Hard Drives

3.5-inch SAS Hard Drives

Storage Controller

Graphics

Quadro

Tesla

Power Supply

Operating System

Condition more info

Talk to a Specialist

Specifications

Save Configuration

Create Quote

Configuration Help

Documentation

Share Configuration

Ask Our Expert Staff

Contact Us

(blank title)

Condition
