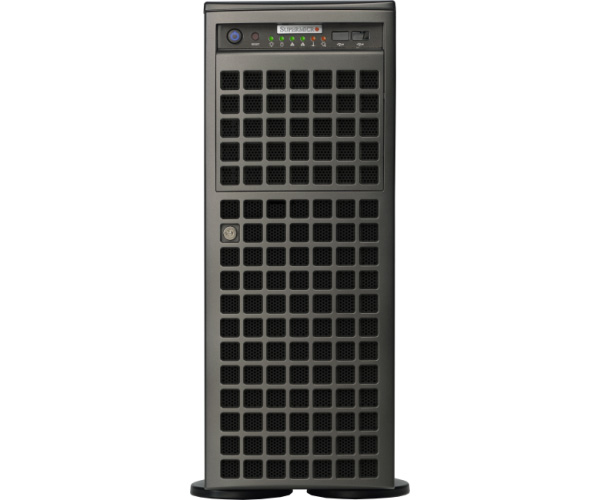

Chassis Form Factor: 4U Rackmountable / Tower
Model: CSE-747BTS-R2K20BP
Optional Rackmount KitMotherboard Super X11DPG-QT CPU Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)‡,
Up to 28 Cores
3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processorsMemory 16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Supports Intel® Optane™ DCPMMChipset Intel C621 chipset SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 Network Controllers Intel® X550 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 outputIPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportInput / Output 10 SATA3 (6Gbps) ports
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
4 USB 2.0 ports (2 rear, 2 via headers)
1 VGA port
7.1 HD Jacks
2 COM ports (1 rear, 1 Header)BIOS Type AMI 32Mb SPI Flash ROM Dimensions Height: 18.2" (462mm)
Width: 7.0" (178mm)
Depth: 26.5" (673mm)Package 27" (H) x 13" (W) x 38" (D) Weight Net Weight: 46 lbs (20.9 kg)
Gross Weight: 62 lbs (28.1 kg)Expansion Slots 4 PCI-E 3.0 x16 (double-width) slots
2 PCI-E 3.0 x16 (single-width) slots
1 PCI-E 3.0 x4 (in x8 slot)Drive Bays / Storage 8 Hot-swap 3.5" drive bays
Optional 4x 2.5" NVMe supported
1 NVMe based M.2 SSD
Form Factors: 2280, 22110Fans 4 Heavy duty fans
2 Rear exhaust fans
2 Optional Rear fans (required for Passive GPUs)Heatsink 2 Active heatsink with optimal fan speed control Power Supply 2200W Redundant Power Supplies Titanium Level (96%) Passive GPU Support GPU kit: MCP-320-74702-0N-KIT Documentation
